SAE J517 100R4

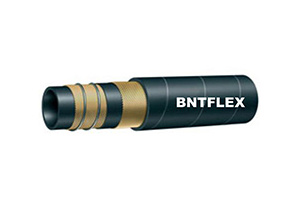

Wire inserted hydraulic suction hose SAE J517 100R4



SAE J517 100R4

Applications:Suitable for petroleum-based and water-based hydraulic fluids;Mainly used in low pressure and vaccum applications;Termperature range:-40℃~+100℃.



Constructions:This hose shall consist of oil resistant synthetic rubber for inner tube,aply or plies of woven or braided textile fibers with a suitable spiral of body steel wire for reinforcement,and oil and weather resistant synthetic rubber for cover.According to the standards of SAE J517 R4.



产品型号

TYPE

软管内经

I.D

软管代码

dash

参考外径

O.D

最大工作压力

MAX W.P.

最小弯曲半径

MIN B.R

长度

LENGTH

参考重量

WEIGHT

DN

mm

inch

mm

Mpa

psi

mm

m

Kg/m

19R4

19.0±0.8

3/4˝

-12

34.9

2.1

298

125

50/100

0.733

25R4

25.4±0.8

-16

41.3

1.7

241

150

50/100

0.931

32R4

31.8±1.2

1-1/4˝

-20

50.8

1.4

199

200

40/20

1.068

38R4

38.1±1.2

1-1/2˝

-24

57.2

1.05

149

255

40/20

1.235

51R4

50.8±1.6

-32

69.9

0.7

99

300

40/20

1.565

64R4

63.5±1.6

2-1/2˝

-40

82.6

0.4

57

355

40/20

1.872

76R4

76.2±1.6

-48

95.3

0.4

57

460

40/20

2.227

89R4

88.9±1.6

3-1/2˝

-56

107.9

0.3

43

530

40/20

2.566

102R4

101.6±1.6

-64

120.7

0.25

36

610

40/20

2.906
