Professional 20HP Diesel Remote Control Lawn Mower 100cm Width Big Power Farm Machine Core Engine Small Tree Crushing Machine

100cm

Professional 20HP Diesel Remote Control Lawn Mower 100cm Width Big Power Farm Machine Core Engine Small Tree Crushing Machine Machine size before wooden box packaging: 170 * 127 * 68cm for crushing woody plants such as trees, vines, etc., 7cm Wooden box size after packaging: 181 * 130 * 85cm Lifting method: remote-controlled hydraulic lifting, front hydraulic cutting table (crushing bin) Machine weight: 360kg Packaging weight: 450kg Mowing width: 100cm Stubble height: 0-25cm Rotary tillage depth: 0-5cm Gravel diameter: 0-10cm Engine fuel type; diesel oil Engine power: Corolla 1105F power 23.7HP (with Euro V) Oil cylinder: Bidirectional oil cylinder Overall horsepower of the machine: 28 horsepower Remote control distance: 800 meters Starting method: Electric start (motor start) Power type: Corolla four stroke diesel engine (such as grassland, forest, photovoltaic, weed control, national power grid, fire isolation, do not use) Pure electric and gasoline products Air filter: Level 5 or above port crossing standard as shown in the diagram Blade quantity: 60 pieces (20 sets * 3=60, vertical pioneering swing blade, manganese steel alloy, double-sided cutting edge) Lifting method: Remote hydraulic lifting (independent front end, imported hydraulic press of forklift grade 1.6 tons, front lifting opening) Degrees above 36 degrees Belt width: 15cm * 2 strips, machine belt embedded with 16 2.5mm steel wires Track loading method: Dual load wheel Charging type: Yushu generator works automatically for charging Self generating generator: Yushu high power above 250ow Walking motor: 780W x2 Generator current: 70A Motor: Pure copper brushless motor Battery specification: 24V20A Number of batteries: 2 Spindle speed: 3600rpm Work efficiency: 2000-6000 m/H, 7 cm branches and small trees can be crushed Climbing performance: ≤ 60 ° Fuel tank capacity: 5.5L Standard fuel consumption: 1.14/H, working time 5-5.5 hours Oil volume: 1.5L Oil type: 4-stroke diesel engine oil

Request product

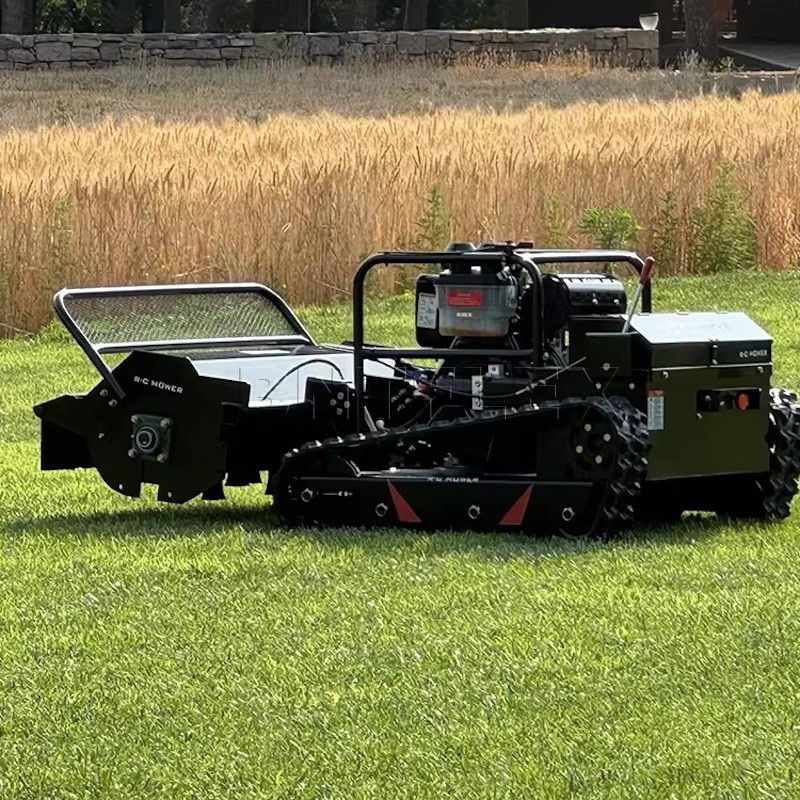

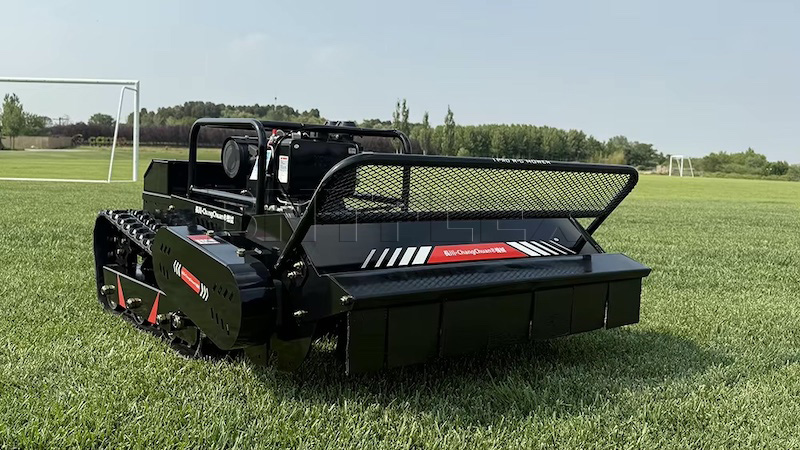

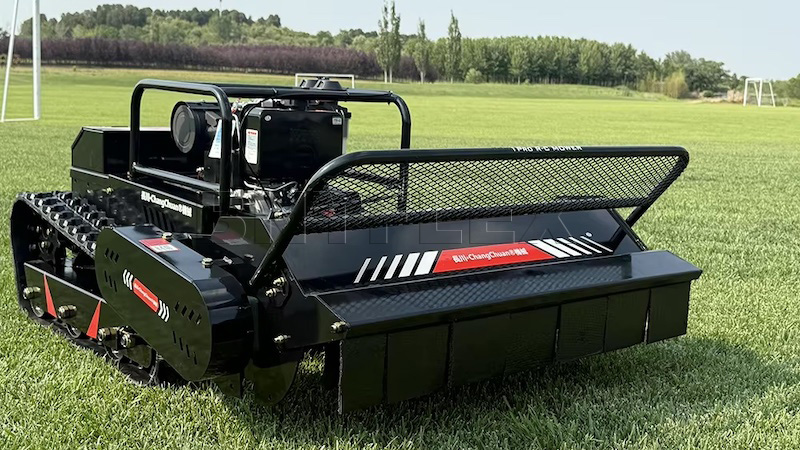

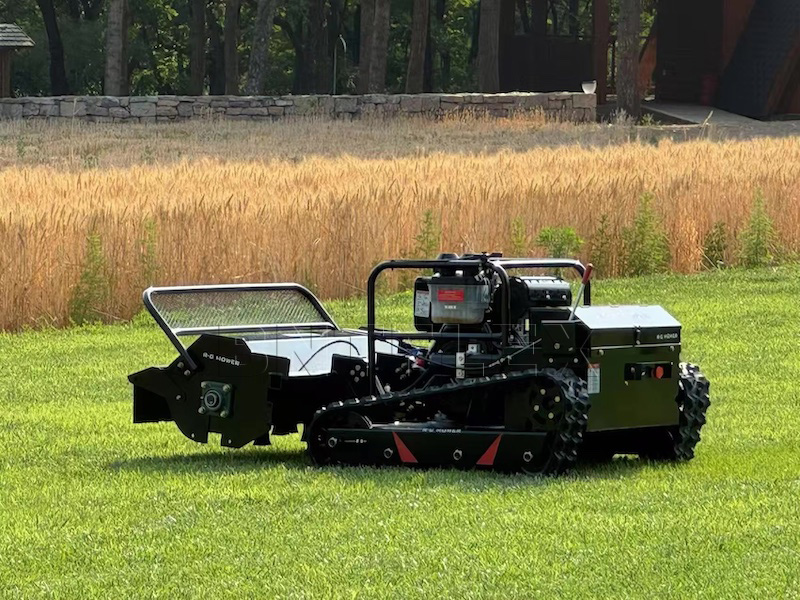

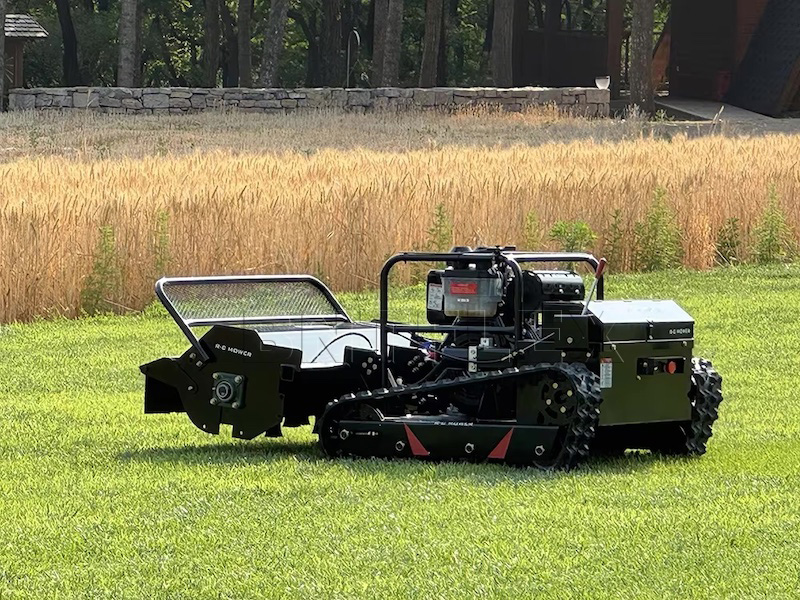

Professional 20HP Diesel Remote Control Lawn Mower 100cm Width Big Power Farm Machine Core Engine Small Tree Crushing Machine

Machine size before wooden box packaging: 170 * 127 * 68cm for crushing woody plants such as trees, vines, etc., 7cm
Wooden box size after packaging: 181 * 130 * 85cm
Lifting method: remote-controlled hydraulic lifting, front hydraulic cutting table (crushing bin)
Machine weight: 360kg
Packaging weight: 450kg
Mowing width: 100cm
Stubble height: 0-25cm
Rotary tillage depth: 0-5cm
Gravel diameter: 0-10cm
Engine fuel type; diesel oil
Engine power: Corolla 1105F power 23.7HP (with Euro V)
Oil cylinder: Bidirectional oil cylinder
Overall horsepower of the machine: 28 horsepower
Remote control distance: 800 meters
Starting method: Electric start (motor start)
Power type: Corolla four stroke diesel engine (such as grassland, forest, photovoltaic, weed control, national power grid, fire isolation, do not use)
Pure electric and gasoline products
Air filter: Level 5 or above port crossing standard as shown in the diagram

Blade quantity: 60 pieces (20 sets * 3=60, vertical pioneering swing blade, manganese steel alloy, double-sided cutting edge)
Lifting method: Remote hydraulic lifting (independent front end, imported hydraulic press of forklift grade 1.6 tons, front lifting opening)
Degrees above 36 degrees
Belt width: 15cm * 2 strips, machine belt embedded with 16 2.5mm steel wires
Track loading method: Dual load wheel

Charging type: Yushu generator works automatically for charging
Self generating generator: Yushu high power above 250ow
Walking motor: 780W x2
Generator current: 70A
Motor: Pure copper brushless motor
Battery specification: 24V20A
Number of batteries: 2
Spindle speed: 3600rpm
Work efficiency: 2000-6000 m/H, 7 cm branches and small trees can be crushed
Climbing performance: ≤ 60 °
Fuel tank capacity: 5.5L
Standard fuel consumption: 1.14/H, working time 5-5.5 hours
Oil volume: 1.5L
Oil type: 4-stroke diesel engine oil
