BNTFLEX HYDRAULIC HOSE FITTING
15611
NPT MALE
|
Name |
PART NO. |
E |
HYDRAULIC HOSE |
|

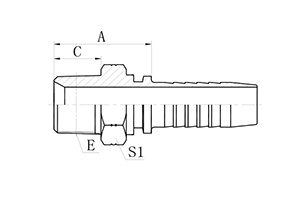

DIMENSIONS |
||||
|
DN |
DASH |
|
A |
C |
S1 |
|
|||
|
BNTFLEX |
15611-02-03 |
Z1/8''X27 |
5 |
3 |
|
22.5 |
10.5 |
12 |
|
|
BNTFLEX |
15611-02-04 |
Z1/8''X27 |
6 |
4 |
|
22.5 |
10.0 |
12 |
|
|
BNTFLEX |
15611-04-03 |
Z1/4''X18 |
5 |
3 |
|
27.5 |
15.0 |
17 |
|
|
BNTFLEX |
15611-04-04 |
Z1/4''X18 |
6 |
4 |
|
28.0 |
14.0 |
17 |
|
|
BNTFLEX |
15611-04-05 |
Z1/4''X18 |
8 |
5 |
|
28.0 |
15.0 |
17 |
|
|
BNTFLEX |
15611-04-06 |
Z1/4''X18 |
10 |
6 |
|
27.0 |
14.0 |
17 |
|
|
BNTFLEX |
15611-06-04 |
Z3/8''X18 |
6 |
4 |
|
28.0 |
15.0 |
19 |
|
|
BNTFLEX |
15611-06-05 |
Z3/8''X18 |
8 |
5 |
|
28.0 |
15.0 |
19 |
|
|
BNTFLEX |
15611-06-06 |
Z3/8''X18 |
10 |
6 |
|
30.0 |
15.0 |
19 |
|
|
BNTFLEX |
15611-06-08 |
Z3/8''X18 |
12 |
8 |
|
30.5 |
15.0 |
19 |
|
|
BNTFLEX |
15611-08-06 |
Z1/2''X14 |
10 |
6 |
|
34.5 |
19.5 |
22 |
|
|
BNTFLEX |
15611-08-08 |
Z1/2''X14 |
12 |
8 |
|
34.5 |
19.0 |
22 |
|
|
BNTFLEX |
15611-08-10 |
Z1/2''X14 |
16 |
10 |
|
36.0 |
19.5 |
22 |
|
|
BNTFLEX |
15611-12-08 |
Z3/4''X14 |
12 |
8 |
|
37.5 |
19.5 |
30 |
|
|
BNTFLEX |
15611-12-10 |
Z3/4''X14 |
16 |
10 |
|
38.0 |
19.5 |
30 |
|
|
BNTFLEX |
15611-12-12 |
Z3/4''X14 |
20 |
12 |
|
38.5 |
19.5 |
30 |
|
|
BNTFLEX |
15611-12-16 |
Z3/4''X14 |
25 |
16 |
|
39.5 |
20.0 |
32 |
|
|
BNTFLEX |
15611-16-10 |
Z1''X11.5 |
16 |
10 |
|
45.0 |
25.5 |
36 |
|
|
BNTFLEX |
15611-16-12 |
Z1''X11.5 |
20 |
12 |
|
45.0 |
25.5 |
36 |
|
|
BNTFLEX |
15611-16-16 |
Z1''X11.5 |
25 |
16 |
|
44.5 |
24.0 |
36 |
|
|
BNTFLEX |
15611-20-16 |
Z1-1/4''X11.5 |
25 |
16 |
|
49.5 |
26.5 |
46 |
|
|
BNTFLEX |
15611-20-20 |
Z1-1/4''X11.5 |
32 |
20 |
|
49.0 |
25.5 |
46 |
|
|
BNTFLEX |
15611-24-24 |
Z1-1/2''X11.5 |
40 |
24 |
|
51.0 |
26.0 |
50 |
|
