20491 HOSE FITTING
20491
BNTFLEX HYDRAULIC HOSE FITTING
20491

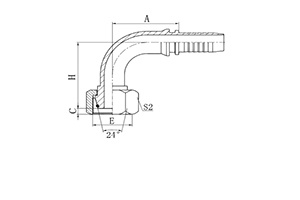

90° METRIC FEMALE 24° CONE O-RING L.T. DIN3865
|
PART NO. |
E |
HYDRAULIC HOSE |
O.D. |
O |
DIMENSIONS |
||||
|
DN |
DASH |
A |
C |
H |
S2 |
||||
|
20491-12-03 |
M12X1.5 |
5 |
3 |
6 |
O04.5X1.5 |
25.6 |
1 |
34.5 |
17 |
|
20491-12-04 |
M12X1.5 |
6 |
4 |
6 |
O04.5X1.5 |
27.5 |
1 |
43.0 |
17 |
|
20491-14-04 |
M14X1.5 |
6 |
4 |
8 |
O06.5X1.5 |
27.5 |
2 |
44.5 |
19 |
|
20491-16-04 |
M16X1.5 |
6 |
4 |
10 |
O08.0X1.5 |
27.5 |
2 |
45 |
22 |
|
20491-16-05 |
M16X1.5 |
8 |
5 |
10 |
O08.0X1.5 |
31.0 |
2 |
49.5 |
22 |
|
20491-16-06 |
M16X1.5 |
10 |
6 |
10 |
O08.0X1.5 |
33.0 |
2 |
50.5 |
22 |
|
20491-18-05T |
M18X1.5 |
8 |
5 |
12 |
O010.0X1.5 |
31.0 |
1.5 |
43.0 |
22 |
|
20491-18-06 |
M18X1.5 |
10 |
6 |
12 |
O010.0X2 |
33.0 |
2.5 |
52.5 |
24 |
|
20491-22-06T |
M22X1.5 |
10 |
6 |
15 |
O012.0X2 |
33.0 |
3 |
47 |
27 |
|
20491-22-08 |
M22X1.5 |
12 |
8 |
15 |
O012.0X2 |
42.5 |
2.5 |
62.5 |
27 |
|
20491-26-08T |
M26X1.5 |
12 |
8 |
18 |
O015.0X2 |
42.5 |
2.1 |
54.5 |
32 |
|
20491-26-10 |
M26X1.5 |
16 |
10 |
18 |
O015.0X2 |
48.5 |
2.5 |
68 |
32 |
|
20491-26-12 |
M26X1.5 |
20 |
12 |
18 |
O015.0X2 |
50.5 |
2.5 |
76 |
32 |
|
20491-30-10T |
M30X2 |
16 |
10 |
22 |
O020.0X2 |
48.5 |
3.8 |
59.5 |
36 |
|
20491-30-12 |
M30X2 |
20 |
12 |
22 |
O020.0X2 |
50.5 |
4 |
78 |
36 |
|
20491-36-12T |
M36X2 |
20 |
12 |
28 |
O026.0X2 |
50.5 |
4.5 |
71 |
46 |
|
20491-36-14T |
M36X2 |
22 |
14 |
28 |
O026.0X2 |
|
4.5 |
|
46 |
|
20491-45-20T |
M45X2 |
32 |
20 |
35 |
O032.0X2.5 |
75 |
4 |
95 |
55 |
|
20491-52-20T |
M52X2 |
32 |
20 |
42 |
O038.0X2.5 |
75 |
4 |
96.5 |
60 |
|
20491-52-24T |
M52X2 |
40 |
24 |
42 |
O038.0X2.5 |
89 |
4 |
108.5 |
60 |
