26741 HOSE FITTING
26741
BNTFLEX HYDRAULIC HOSE FITTING
26741

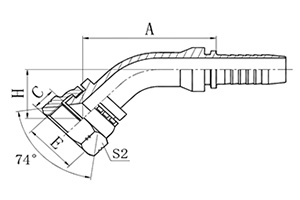

45° JIC FEMALE 74° CONE SEAT
|
Name |
PART NO. |
E |
HYDRAULIC HOSE |
|
DIMENSIONS |
||||
|
DN |
DASH |
|
A |
C |
H |
S2 |
|||
|
BNTFLEX |
26741-04-04 |
7/16''X20 |
6 |
4 |
|
40.2 |
9 |
18.1 |
15 |
|
BNTFLEX |
26741-05-04 |
1/2''X20 |
6 |
4 |
|
40.5 |
9.5 |
18.5 |
17 |
|
BNTFLEX |
26741-05-05 |
1/2''X20 |
8 |
5 |
|
42.7 |
9.5 |
19.3 |
17 |
|
BNTFLEX |
26741-06-04 |
9/16''X18 |
6 |
4 |
|
40.5 |
10.5 |
18.5 |
19 |
|
BNTFLEX |
26741-06-05 |
9/16''X18 |
8 |
5 |
|
42.7 |
10.5 |
19.3 |
19 |
|
BNTFLEX |
26741-06-06 |
9/16''X18 |
10 |
6 |
|
44.3 |
10.5 |
20 |
19 |
|
BNTFLEX |
26741-08-06 |
3/4''X16 |
10 |
6 |
|
45.7 |
11 |
21.4 |
24 |
|
BNTFLEX |
26741-08-08 |
3/4''X16 |
12 |
8 |
|
58.6 |
11 |
23.5 |
24 |
|
BNTFLEX |
26741-10-06 |
7/8''X14 |
10 |
6 |
|
46 |
13 |
21.8 |
27 |
|
BNTFLEX |
26741-10-08 |
7/8''X14 |
12 |
8 |
|
58.9 |
13 |
24 |
27 |
|
BNTFLEX |
26741-10-10 |
7/8''X14 |
16 |
10 |
|
70.1 |
13 |
25.3 |
27 |
|
BNTFLEX |
26741-10-12 |
7/8''X14 |
20 |
12 |
|
77 |
13 |
28.9 |
27 |
|
BNTFLEX |
26741-12-08 |
1-1/16''X12 |
12 |
8 |
|
60 |
15 |
25 |
32 |
|
BNTFLEX |
26741-12-10 |
1-1/16''X12 |
16 |
10 |
|
71.21 |
15 |
26.4 |
32 |
|
BNTFLEX |
26741-12-12 |
1-1/16''X12 |
20 |
12 |
|
77.4 |
15 |
30 |
32 |
|
BNTFLEX |
26741-14-12 |
1-3/16''X12 |
20 |
12 |
|
77.4 |
15 |
30 |
36 |
|
BNTFLEX |
26741-16-12 |
1-5/16''X12 |
20 |
12 |
|
77.4 |
16 |
30 |
41 |
|
BNTFLEX |
26741-16-16 |
1-5/16''X12 |
25 |
16 |
|
85.7 |
16 |
31.5 |
41 |
|
BNTFLEX |
26741-20-16 |
1-5/8''X12 |
25 |
16 |
|
86.8 |
17 |
32.5 |
50 |
|
BNTFLEX |
26741-20-20 |
1-5/8''X12 |
32 |
20 |
|
97.3 |
17 |
36.6 |
50 |
|
BNTFLEX |
26741-24-20 |
1-7/8''X12 |
32 |
20 |
|
97.7 |
20 |
36.9 |
55 |
|
BNTFLEX |
26741-24-24 |
1-7/8''X12 |
40 |
24 |
|
112.3 |
20 |
41.6 |
55 |
|
BNTFLEX |
26741-32-32 |
2-1/2''X12 |
50 |
32 |
|
131 |
23.5 |
49.5 |
75 |
