87311 SAE FLANGE (3000PSI)
87311
BNTFLEX HYDRAULIC HOSE FITTING
87311
SAE FLANGE 3000 PSI
|
Name |
PART NO. |
E |
HYDRAULIC HOSE |
|

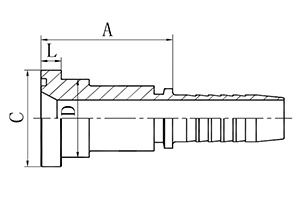

DIMENSIONS |
||||
|
DN |
DASH |
|
A |
C |
H |
S2 |
|||
|
BNTFLEX |
87311-08-08 |
1/2'' |
12 |
8 |
|
46 |
30.2 |
24 |
6.73 |
|
BNTFLEX |
87311-12-08 |
3/4'' |
12 |
8 |
|
47 |
38.1 |
32 |
6.73 |
|
BNTFLEX |
87311-12-10 |
3/4'' |
16 |
10 |
|
48 |
38.1 |
32 |
6.73 |
|
BNTFLEX |
87311-12-12 |
3/4'' |
20 |
12 |
|
48 |
38.1 |
32 |
6.73 |
|
BNTFLEX |
87311-12-16 |
3/4'' |
25 |
16 |
|
49 |
38.1 |
32 |
6.73 |
|
BNTFLEX |
87311-16-12 |
1'' |
20 |
12 |
|
51 |
44.4 |
38 |
8 |
|
BNTFLEX |
87311-16-16 |
1'' |
25 |
16 |
|
52 |
44.4 |
38 |
8 |
|
BNTFLEX |
87311-16-20 |
1'' |
32 |
20 |
|
53 |
44.4 |
38 |
8 |
|
BNTFLEX |
87311-20-16 |
1-1/4'' |
25 |
16 |
|
57 |
50.8 |
43 |
8 |
|
BNTFLEX |
87311-20-20 |
1-1/4'' |
32 |
20 |
|
58 |
50.8 |
43 |
8 |
|
BNTFLEX |
87311-24-20 |
1-1/2'' |
32 |
20 |
|
68 |
60.3 |
50 |
8 |
|
BNTFLEX |
87311-24-24 |
1-1/2'' |
40 |
24 |
|
68 |
60.3 |
50 |
8 |
|
BNTFLEX |
87311-32-24 |
2'' |
40 |
24 |
|
70 |
71.4 |
62 |
9.53 |
|
BNTFLEX |
87311-32-32 |
2'' |
50 |
32 |
|
70 |
71.4 |
62 |
9.53 |
|
BNTFLEX |
87311-32-40 |
2'' |
64 |
40 |
|
75 |
71.4 |
62 |
9.53 |
|
BNTFLEX |
87311-40-32 |
2-1/2'' |
50 |
32 |
|
73 |
84.1 |
74 |
9.53 |
|
BNTFLEX |
87311-40-40 |
2-1/2'' |
64 |
40 |
|
76 |
84.1 |
74 |
9.53 |
