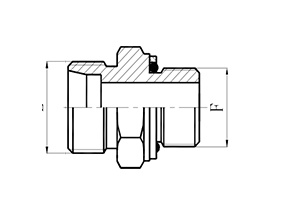

1CG 1DG HYDRAULIC ADAPTER
1CG 1DG
BNTFLEX HYDRAULIC ADAPTER
1CG 1DG
BSP THREAD STUD ENDS WITH O-RING SEALING
|
PART NO. |
THREAD |
TUBE O.D. |
DIMENSIONS |
||||||
|
E |
F |
D1 |
B |
I1 |
L1 |
S1 |
S2 |
|
|
|
1CG-12-02 |
M12X1.5 |
G1/8''X28 |
6 |
9.5 |
8.5 |
23 |
14 |
14 |
|
|
1CG-12-04 |
M12X1.5 |
G1/4''X19 |
6 |
10 |
10 |
25 |
19 |
14 |
|
|
1CG-14-04 |
M14X1.5 |
G1/4''X19 |
8 |
10 |
10 |
25 |
19 |
17 |
|
|
1CG-14-06 |
M14X1.5 |
G3/8''X19 |
8 |
11.5 |
11.5 |
26 |
22 |
17 |
|
|
1CG-14-08 |
M14X1.5 |
G1/2''X14 |
8 |
14 |
13 |
27.5 |
27 |
34 |
|
|
1CG-16-04 |
M16X1.5 |
G1/4''X19 |
10 |
10 |
11 |
26 |
19 |
19 |
|
|
1CG-16-06 |
M16X1.5 |
G3/8''X19 |
10 |
11.5 |
12.5 |
27 |
22 |
19 |
|
|
1CG-16-08 |
M16X1.5 |
G1/2''X14 |
10 |
14 |
14 |
29 |
27 |
19 |
|
|
1CG-18-06 |
M18X1.5 |
G3/8''X19 |
12 |
11.5 |
12.5 |
27 |
22 |
22 |
|
|
1CG-18-08 |
M18X1.5 |
G1/2''X14 |
12 |
14 |
13 |
28 |
27 |
22 |
|
|
1CG-22-06 |
M22X1.5 |
G3/8''X19 |
15 |
11.5 |
13.5 |
29 |
24 |
27 |
|
|
1CG-22-08 |
M22X1.5 |
G1/2''X14 |
15 |
14 |
14 |
29 |
27 |
27 |
|
|
1CG-22-12 |
M22X1.5 |
G3/4''X14 |
15 |
15.5 |
20 |
30 |
32 |
32 |
|
|
1CG-26-08 |
M26X1.5 |
G1/2''X14 |
18 |
14 |
14.5 |
31 |
27 |
32 |
|
|
1CG-26-12 |
M26X1.5 |
G3/4''X14 |
18 |
15.5 |
14.5 |
32 |
32 |
32 |
|
|
1CG-30-12 |
M30X1.5 |
G3/4''X14 |
22 |
15.5 |
16.5 |
33 |
32 |
36 |
|
|
1CG-30-16 |
M30X2 |
G1''X11 |
22 |
18 |
17.5 |
35 |
41 |
36 |
|
|
1CG-36-16 |
M36X2 |
G1''X11 |
28 |
18 |
17.5 |
34 |
41 |
41 |
|
|
1CG-45-20 |
M45X2 |
G1-1/4''X11 |
35 |
20 |
17.5 |
39 |
50 |
50 |
|
|
1CG-52-20 |
M52X2 |
G1-1/4''X11 |
42 |
20 |
19 |
42 |
55 |
60 |
|
|
1CG-52-32 |
M52X2 |
G2''X11 |
42 |
24.5 |
25 |
44 |
70 |
60 |
|
|
|
|||||||||
|
1DG-14-04 |
M14X1.5 |
G1/4''X19 |
6 |
10 |
13 |
28 |
19 |
17 |
|
|
1DG-16-04 |
M16X1.5 |
G1/4''X19 |
8 |
10 |
15 |
31 |
19 |
19 |
|
|
1DG-18-04 |
M18X1.5 |
G1/4''X19 |
10 |
10 |
14.5 |
31 |
19 |
22 |
|
|
1DG-18-06 |
M18X1.5 |
G3/8''X19 |
10 |
11.5 |
15 |
31 |
22 |
22 |
|
|
1DG-20-06 |
M20X1.5 |
G3/8''X19 |
12 |
11.5 |
17 |
32 |
22 |
24 |
|
|
1DG-20-08 |
M20X1.5 |
G1/2''X14 |
12 |
14 |
17.5 |
34 |
27 |
24 |
|
|
1DG-22-06 |
M22X1.5 |
G3/8''X19 |
14 |
11.5 |
19 |
37 |
24 |
27 |
|
|
1DG-22-08 |
M22X1.5 |
G1/2''X14 |
14 |
14 |
19 |
37 |
27 |
27 |
|
|
1DG-24-04 |
M24X1.5 |
G1/4''X19 |
16 |
11 |
18 |
37 |
27 |
30 |
|
|
1DG-24-08 |
M24X1.5 |
G1/2''X14 |
16 |
14 |
18.5 |
37 |
27 |
30 |
|
|
1DG-30-12 |
M30X2 |
G3/4''X14 |
20 |
15.5 |
20.5 |
42 |
32 |
36 |
|
|
1DG-36-12 |
M36X2 |
G3/4''X14 |
25 |
15.5 |
23 |
47 |
41 |
46 |
|
|
1DG-36-16 |
M36X2 |
G1''X11 |
25 |
18 |
17.5 |
47 |
41 |
46 |
|
|
1DG-42-16 |
M42X2 |
G1''X11 |
30 |
18 |
23.5 |
48 |
46 |
50 |
|
|
1DG-42-20 |
M42X2 |
G1-1/4''X11 |
30 |
20 |
23.5 |
50 |
50 |
50 |
|
| 1DG-52-24 | M52X2 | G1-1/2''X11 | 38 | 21.5 | 26 | 57 | 55 | 60 | |
