1CH HYDRAULIC ADAPTER
1CH
BNTFLEX HYDRAULIC ADAPTER
1CH

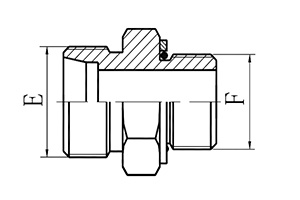

METRIC THREAD STUD ENDS WITH O-RING SEALING
|
代号 PART NO. |
螺纹 THREAD |
管子外径TUBE O.D. |
尺寸(DIMENSIONS) |
||||||
|
E |
F |
D1 |
|
B |
I1 |
L1 |
S1 |
S2 |
|
|
1CH-12-10 |
M12X1.5 |
M10X1 |
6 |
|
8.5 |
9.5 |
23 |
14 |
14 |
|
1CH-14-14 |
M14X1.5 |
M14X1.5 |
8 |
|
11 |
10 |
25 |
19 |
17 |
|
1CH-14-12 |
M14X1.5 |
M12X1.5 |
8 |
|
11 |
10 |
25 |
17 |
17 |
|
1CH-16-14 |
M16X1.5 |
M14X1.5 |
10 |
|
11 |
13 |
26 |
19 |
19 |
|
1CH-18-14 |
M18X1.5 |
M14X1.5 |
12 |
|
11 |
11 |
25.5 |
19 |
22 |
|
1CH-14-18 |
M14X1.5 |
M18X1.5 |
8 |
|
12.5 |
11.5 |
26.5 |
24 |
17 |
|
1CH-16-16 |
M16X1.5 |
M16X1.5 |
10 |
|
11.5 |
13 |
28 |
22 |
19 |
|
1CH-16-18 |
M16X1.5 |
M18X1.5 |
10 |
|
12.5 |
12.5 |
28 |
24 |
19 |
|
1CH-18-16 |
M18X1.5 |
M18X1.5 |
12 |
|
11.5 |
12 |
27 |
22 |
22 |
|
1CH-22-16 |
M22X1.5 |
M16X1 |
12 |
|
11.5 |
13.5 |
29.5 |
24 |
27 |
|
1CH-22-18 |
M22X1.5 |
M18X1.5 |
15 |
|
12.5 |
13.5 |
29 |
24 |
27 |
|
1CH-16-22 |
M16X1.5 |
M22X1.5 |
10 |
|
13 |
14 |
29.5 |
27 |
19 |
|
1CH-22-20 |
M22X1.5 |
M20X1.5 |
15 |
|
12 |
15 |
30.5 |
27 |
27 |
|
1CH-22-22 |
M22X1.5 |
M22X1.5 |
12 |
|
13 |
15 |
31 |
27 |
27 |
|
1CH-26-22 |
M26X1.5 |
M22X1.5 |
18 |
|
13 |
14.5 |
31 |
27 |
32 |
|
1CH-26-26 |
M26X1.5 |
M26X1.5 |
18 |
|
13.5 |
13.5 |
31 |
32 |
32 |
|
1CH-26-27 |
M26X1.5 |
M27X1.5 |
18 |
|
16 |
14.5 |
32 |
32 |
32 |
|
1CH-26-33 |
M26X1.5 |
M33X2 |
18 |
|
16 |
15.5 |
33 |
41 |
32 |
|
1CH-30-22 |
M30X2 |
M22X1.5 |
22 |
|
13 |
17.5 |
33 |
32 |
41 |
|
1CH-30-27 |
M30X2 |
M27X2 |
22 |
|
16 |
16.5 |
33 |
32 |
36 |
|
1CH-30-30 |
M30X2 |
M30X2 |
22 |
|
16 |
17.5 |
33 |
36 |
36 |
|
1CH-36-27 |
M36X2 |
M27X2 |
28 |
|
16 |
17.5 |
34 |
41 |
41 |
|
1CH-36-33 |
M36X2 |
M33X2 |
28 |
|
16 |
17.5 |
34 |
41 |
41 |
|
1CH-36-42 |
M36X2 |
M42X2 |
28 |
|
16 |
18.5 |
35 |
50 |
41 |
|
1CH-45-33 |
M45X2 |
M33X2 |
35 |
|
16 |
17.5 |
37 |
46 |
50 |
|
1CH-45-42 |
M45X2 |
M42X2 |
35 |
|
16 |
17.5 |
37 |
50 |
50 |
|
1CH-52-48 |
M52X2 |
M48X2 |
42 |
|
17.5 |
19 |
|
55 |
60 |
