26791-Y ONE PIECE FITTINGS
26791-Y

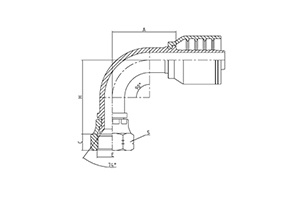

BNTFLEX HYDRAULIC FITTING
26791-Y
90° JIC FEMAIL74° CONE SEAT SAE J514
|
PART NO. |
THREADE |
HOSE BORE |
DIMENSIONS |
||||
|
E |
DN |
DASH |
A |
H |
C |
S |
|
|
26791-04-04Y |
7/16"X20 |
6 |
4 |
30 |
30 |
9 |
15 |
|
26791-05-05Y |
1/2"X20 |
8 |
5 |
33 |
33 |
9.5 |
17 |
|
26791-06-05Y |
9/16"X18 |
8 |
5 |
33 |
33 |
10.5 |
19 |
|
26791-06-06Y |
9/16"X18 |
10 |
6 |
36.5 |
38.5 |
10.5 |
19 |
|
26791-08-06Y |
3/4"X16 |
10 |
6 |
36.5 |
41 |
11 |
24 |
|
26791-08-08Y |
3/4"X16 |
13 |
8 |
43.5 |
46.5 |
11 |
24 |
|
26791-10-10Y |
7/8"X14 |
16 |
10 |
55 |
51.5 |
13 |
27 |
|
26791-12-10Y |
1.1/16"X12 |
16 |
10 |
55 |
54 |
15 |
32 |
|
26791-12-12Y |
1.1/16"X12 |
19 |
12 |
64 |
62.5 |
15 |
32 |
|
26791-14-12Y |
1.3/16"X12 |
19 |
12 |
64 |
63.5 |
15 |
36 |
|
26791-16-16Y |
1.5/16"X12 |
25 |
16 |
74 |
72 |
16 |
41 |
|
26791-20-20Y |
1.5/8"X12 |
32 |
20 |
91.5 |
84 |
17 |
50 |
|
26791-24-24Y |
1.7/8"X12 |
38 |
24 |
109 |
100 |
20 |
55 |
|
26791-32-32Y |
2.1/2"X12 |
51 |
32 |
129 |
121.5 |
23.5 |
75 |
