20411-Y ONE PIECE FITTINGS
20411-Y
BNTFLEX HYDRAULIC FITTING
20411-Y

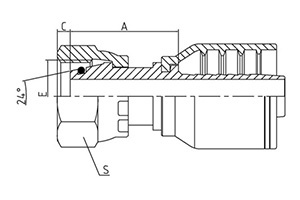

Metric Female 24° Cone O-Ring L.T. Iso 12151-2-Din 3865
|
PART NO. |
E |
HOSE BORE |
TUBE O.D. |
O |
DIMENSIONS |
||
|
THREADE |
DN |
DASH |
O-RING |
A |
S |
||
|
20411-12-04Y |
M12X1.5 |
6 |
4 |
6 |
O4.5X1.5 |
24 |
14 |
|
20411-14-04Y |
M14X1.5 |
6 |
4 |
8 |
O6X1.5 |
24 |
17 |
|
20411-16-04Y |
M16X1.5 |
6 |
4 |
10 |
O8X1.5 |
24 |
19 |
|
20411-16-05Y |
M16X1.5 |
8 |
5 |
10 |
O8X1.5 |
25.5 |
19 |
|
20411-18-06Y |
M18X1.5 |
10 |
6 |
12 |
O10X1.5 |
24.5 |
22 |
|
20411-22-08Y |
M22X1.5 |
13 |
8 |
15 |
O12X1.5 |
29 |
27 |
|
20411-26-10Y |
M26X1.5 |
16 |
10 |
18 |
O15X1.5 |
31 |
32 |
|
20411-26-12Y |
M26X1.5 |
19 |
12 |
18 |
O15X1.5 |
31 |
32 |
|
20411-27-12Y |
M27X1.5 |
19 |
12 |
18 |
O15X1.5 |
31 |
32 |
|
20411-30-12Y |
M30X2 |
19 |
12 |
22 |
O20X1.5 |
34 |
36 |
|
20411-36-16Y |
M36X2 |
25 |
16 |
28 |
O26X1.5 |
36 |
41 |
|
20411-45-22Y |
M45X2 |
32 |
20 |
35 |
O32X1.5 |
35 |
50 |
|
20411-52-24Y |
M52X2 |
38 |
24 |
42 |
O38X1.5 |
38 |
60 |
