87341-Y ONE PIECE FITTINGS
87341-Y
BNTFLEX HYDRAULIC ADAPTER
87341-Y

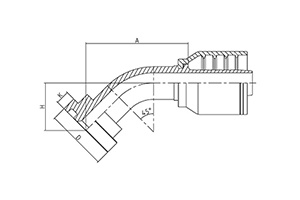

45° SAE FLANGE 3000PSI CONE 61 ISO 12151-3—SAE J516
BNTFLEX HYDRAULIC ADAPTER
87341-Y
45° SAE FLANGE 3000PSI CONE 61 ISO 12151-3—SAE J516
|
PART NO. |
FLANGE SIZE |
HOSE BORE |
DIMENSIONS |
||||
|
DN |
DASH |
A |
D |
K |
H |
||
|
87341-08-08RW |
1/2" |
13 |
8 |
55.5 |
30.2 |
6.73 |
23 |
|
87341-12-12RW |
3/4" |
19 |
12 |
71 |
38.1 |
6.73 |
28 |
|
87341-16-12RW |
1" |
19 |
12 |
71 |
44.4 |
8 |
28 |
|
87341-16-16RW |
1" |
25 |
16 |
82 |
44.4 |
8 |
29.4 |
|
87341-20-16RW |
1.1/4" |
25 |
16 |
82 |
50.8 |
8 |
29.4 |
|
87341-20-20RW |
1.1/4" |
32 |
20 |
94.5 |
50.8 |
8 |
33.8 |
|
87341-24-20RW |
1.1/2" |
32 |
20 |
94.5 |
60.3 |
8 |
33.8 |
|
87341-24-24RW |
1.1/2" |
38 |
24 |
109.9 |
60.3 |
8 |
40.4 |
|
87341-32-24RW |
2" |
38 |
24 |
109.9 |
71.4 |
9.53 |
40.4 |
|
87341-32-32RW |
2" |
51 |
32 |
127 |
71.4 |
9.53 |
46.3 |
