87391-Y ONE PIECE FITTINGS
87391-Y
BNTFLEX HYDRAULIC FITTING
87391-Y

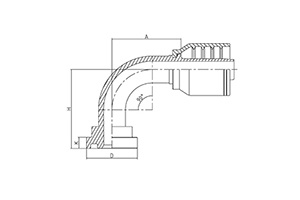

90° SAE FLANGE 3000PSI CONE 61 ISO 12151-3-SAE J516
|
PART NO. |
FLANGE SIZE |
HOSE BORE |
DIMENSIONS |
||||
|
DN |
DASH |
A |
ΦD |
L |
H |
||
|
87391-08-08Y |
1/2" |
13 |
8 |
43.5 |
30.2 |
6.73 |
47 |
|
87391-12-08Y |
3/4" |
13 |
8 |
43.5 |
38.1 |
6.73 |
48 |
|
87391-12-10Y |
3/4" |
16 |
10 |
56 |
38.1 |
6.73 |
53 |
|
87391-12-12Y |
3/4" |
19 |
12 |
64 |
38.1 |
6.73 |
59 |
|
87391-12-12(H100)Y |
3/4" |
19 |
12 |
64 |
38.1 |
6.73 |
100 |
|
87391-12-12(H127)Y |
3/4" |
19 |
12 |
64 |
38.1 |
6.73 |
127 |
|
87391-12-12(H150)Y |
3/4" |
19 |
12 |
64 |
38.1 |
6.73 |
150 |
|
87391-12-16Y |
3/4" |
25 |
16 |
74 |
38.1 |
6.73 |
66 |
|
87391-16-12Y |
1" |
19 |
12 |
64 |
44.4 |
8 |
59 |
|
87391-16-16Y |
1" |
25 |
16 |
74 |
44.4 |
8 |
66 |
|
87391-16-16(H100)Y |
1" |
25 |
16 |
76 |
44.4 |
8 |
100 |
|
87391-16-16(H127)Y |
1" |
25 |
16 |
76 |
44.4 |
8 |
127 |
|
87391-16-16(H150)Y |
1" |
25 |
16 |
76 |
44.4 |
8 |
150 |
|
87391-16-20Y |
1" |
32 |
20 |
91.5 |
44.4 |
8 |
78.5 |
|
87391-20-16Y |
1.1/4" |
25 |
16 |
74 |
50.8 |
8 |
66 |
|
87391-20-20Y |
1.1/4" |
32 |
20 |
91.5 |
50.8 |
8 |
78.5 |
|
87391-20-20(H100)Y |
1.1/4" |
32 |
20 |
91.5 |
50.8 |
8 |
100 |
|
87391-20-20(H100)Y |
1.1/4" |
32 |
20 |
91.5 |
50.8 |
8 |
127 |
|
87391-20-20(H127)Y |
1.1/4" |
32 |
20 |
91.5 |
50.8 |
8 |
150 |
|
87391-20-20(H150)Y |
1.1/4" |
38 |
24 |
109 |
50.8 |
8 |
78.5 |
|
87391-20-24Y |
1.1/2" |
32 |
20 |
91.5 |
60.3 |
8 |
78.5 |
|
87391-24-20Y |
1.1/2" |
38 |
24 |
109 |
60.3 |
8 |
94 |
|
87391-24-24Y |
1.1/2" |
38 |
24 |
109 |
60.3 |
8 |
127 |
|
87391-24-24(H127)Y |
2" |
38 |
24 |
109 |
71.4 |
9.53 |
94 |
|
87391-32-24Y |
2" |
51 |
32 |
131 |
71.4 |
9.53 |
115 |
|
87391-32-32Y |
2.1/2" |
51 |
32 |
131 |
84.1 |
9.53 |
115 |
