87641-Y ONE PIECE FITTINGS
87641-Y
BNTFLEX HYDRAULIC ADAPTER
87641-Y
SAE FLANGE 3000PSI CONE 62 ISO 12151-3-SAE J516
BNTFLEX HYDRAULIC ADAPTER
87641-Y
SAE FLANGE 3000PSI CONE 62 ISO 12151-3-SAE J516
|
PART NO. |
FLANGE SIZE |
HOSE BORE |

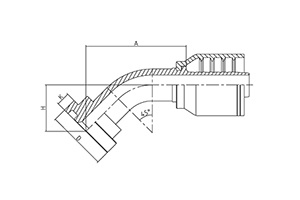

DIMENSIONS |
||||
|
DN |
DASH |
A |
D |
K |
H |
||
|
87641-08-08Y |
1/2" |
13 |
8 |
57.6 |
31.7 |
7.75 |
25.1 |
|
87641-12-12Y |
3/4" |
19 |
12 |
73.5 |
41.3 |
8.76 |
30.9 |
|
87641-16-16Y |
1" |
25 |
16 |
87 |
47.6 |
9.53 |
34.4 |
|
87641-20-20Y |
1.1/4" |
32 |
20 |
103 |
54 |
10.29 |
41.5 |
|
87641-24-24Y |
1.1/2" |
38 |
24 |
120 |
63.5 |
12.57 |
50.3 |
|
87641-32-32Y |
2" |
51 |
32 |
143 |
79.4 |
12.57 |
62 |
