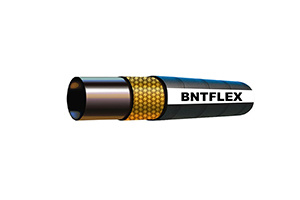

Steel wire braided hydraulic hose for mining:602
Steel wire braided hydraulic hose for mining:602
Steel wire braided hydraulic hose for mining:602
Correspond/Exceed the standards of GB/T3683-92/MT/T98-2006
HYDRAULIC HOSE
Application:Suitable for water and petroleum-based hydraulic fluids.
Constructions:This hose consists of oil resistant synthetic rubber for inner tube, braided high tensile steel wire for reinforcement, and weather resiatant synthetic rubber for cloth or wrapped cover.
Temperature range:-40℃~+100℃
|
型号 Type |
HOSE SIZE |
增强层外径 R.O.D |
参考外径 O.D |
最大工作压力 MAX W.P |
最小爆破压力 min B.P |
最小弯曲半径 min B.R |
长度 LENGTH |
参考重量 WEIGHT |
||
|
dash |
mm |
inch |
mm |
mm |
Mpa |
Mpa |
mm |
m |
Kg/m |
|
|
602-0601 |
-4 |
6.0±0.5 |
1/4˝ |
11.6±0.5 |
15.2±0.8 |
32.0 |
180.0 |
100 |
50/20 |
0.29 |
|
602-0801 |
-5 |
8.0±0.5 |
5/16˝ |
13.6±0.5 |
17.2±0.8 |
28.0 |
70.0 |
115 |
50/20 |
0.35 |
|
602-1001 |
-6 |
10.0±0.5 |
3/8˝ |
15.6±0.5 |
19.2±0.8 |
26.0 |
64.0 |
130 |
50/20 |
0.39 |
|
602-1301 |
-8 |
13.0±0.5 |
1/2˝ |
19.4±0.5 |
23.0±0.8 |
22.0 |
56.0 |
180 |
50/20 |
0.54 |
|
602-1601 |
-10 |
16.0±0.5 |
5/8˝ |
22.5±0.5 |
26.0±0.8 |
17.0 |
42.0 |
205 |
50/20 |
0.59 |
|
602-1901 |
-12 |
19.0±0.5 |
3/4˝ |
25.5±0.5 |
29.0±0.8 |
14.4 |
36.0 |
240 |
50/20 |
0.71 |
|
602-2201 |
-14 |
22.0±0.5 |
7/8˝ |
28.5±0.5 |
32.0±0.8 |
13.0 |
32.0 |
280 |
50/20 |
0.80 |
|
602-2501 |
-16 |
25.0±0.5 |
1˝ |
32.0±0.5 |
35.6±0.8 |
11.0 |
28.0 |
300 |
40/20 |
1.00 |
|
602-3201 |
-20 |
32.0±0.5 |
1-1/4˝ |
39.0±0.5 |
44.0±1.2 |
9.0 |
22.5 |
420 |
40/20 |
1.41 |
|
602-3801 |
-24 |
38.0±0.5 |
1-1/2˝ |
45.5±0.5 |
50.0±1.2 |
5.6 |
17.5 |
500 |
40/20 |
1.52 |
