SAE J517 100R17
SAE J517 100R17
SAE J517 100R17

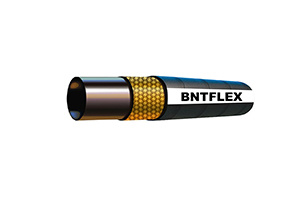

Steel wire braided hydraulic hose:SAE J517 100R17
SAE J517 100R17
Applications:suitable for petroleum-based hydraulic fluids,temperature range:-40℃ +100℃;
Inner tube:oil resistant synthetic rubber;
Reinforcement:one braids of high tensile steel wire;
Constructions:this hose consists of oil,heat resistant synthetic rubber for inner tube,one or two braids of high tensile steel wire for reinforcement, and weather resistant synthetic rubber for cover.According to the standards of SAE J517 100R16 and GB/T10544-2003.
|
HOSE SIZE |
增强层外径 R.O.D |
胶管最大外径O.D |
最大工作压力 MAX W.P. |
最小爆破压力 MIN B.P |
最小弯曲半径 MIN B.R |
长度 LENGTH |
参考重量 WEIGHT |
|||||
|
DN |
dash |
mm |
inch |
mm |
mm |
Mpa |
Psi |
Mpa |
Psi |
mm |
m |
Kg/m |
|
5 |
-3 |
5±0.4 |
3/16˝ |
10.1 |
11.6 |
21.0 |
3982 |
84.0 |
11928 |
45 |
50/20 |
0.204 |
|
8 |
-5 |
8.1±0.4 |
5/16˝ |
13.0 |
15.0 |
21.0 |
3982 |
84.0 |
11928 |
55 |
50/20 |
0.268 |
|
10 |
-6 |
9.7±0.4 |
3/8˝ |
15.0 |
17.0 |
21.0 |
3982 |
84.0 |
11928 |
65 |
50/20 |
0.333 |
|
12.5 |
-8 |
12.9±0.6 |
1/2˝ |
18.8 |
21.1 |
21.0 |
3982 |
84.0 |
11928 |
90 |
50/20 |
0.465 |
|
16 |
-10 |
16.1±0.6 |
5/8˝ |
23.6 |
25.9 |
21.0 |
3982 |
84.0 |
11928 |
100 |
50/20 |
0.734 |
|
19 |
-12 |
19.2±0.6 |
3/4˝ |
27.7 |
30.3 |
21.0 |
3982 |
84.0 |
11928 |
120 |
50/20 |
0.896 |
|
25 |
-16 |
25.7±0.7 |
1˝ |
35.6 |
36.6 |
21.0 |
3982 |
84.0 |
11928 |
150 |
40/20 |
1.144 |
