HYDRAULIC HOSE WITH BIG DIAMETER
BIG DIAMETER HOSE
HYDRAULIC HOSE WITH BIG DIAMETER
Correspond/Exceed the standards of GB/T3683-92/MT/T98-2006
HYDRAULIC HOSE WITH BIG DIAMETER

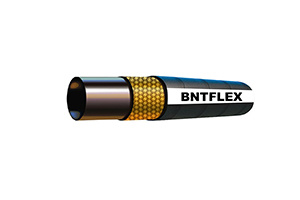

Constructions:This hose consists of oil resistant synthetic rubber for inner tube, braided high tensile steel wire for reinforcement, and weather resiatant synthetic rubber for cloth or wrapped cover(sizes:2˝~4˝)
Temperature range:-40℃~+100℃
|
产品型号 |
HOSE SIZE |
增强层外径 R.O.D |
胶管最大外径O.D |
最大工作压力 MAX W.P. |
最小爆破压力 MIN B.P |
最小弯曲半径 MIN B.R |
长度 LENGTH |
参考重量 WEIGHT |
|||
|
TYPE |
DN |
dash |
mm |
inch |
mm |
mm |
Mpa |
Mpa |
mm |
m |
Kg/m |
|
64-01 |
64 |
-40 |
64.1±1.0 |
2-1/2˝ |
71.0±0.8 |
75.0±1.0 |
3.5 |
10.5 |
760 |
20 |
2.416 |
|
76-01 |
76 |
-48 |
76.0±0.7 |
3˝ |
84.2±0.8 |
88.0±1.5 |
3.0 |
9.0 |
930 |
20 |
2.874 |
|
89-01 |
89 |
-56 |
90.0±0.8 |
3-1/2˝ |
99.0±0.8 |
103.0±2.0 |
2.0 |
6.0 |
1100 |
20 |
3.718 |
|
102-01 |
102 |
-64 |
102.0±0.8 |
4˝ |
111.0±1.0 |
115.0±2.0 |
1.5 |
4.5 |
1250 |
20 |
4.040 |
|
64-02 |
64 |
-40 |
64.1±1.0 |
2-1/2˝ |
74.0±0.8 |
78.0±1.0 |
8.0 |
24.0 |
840 |
20 |
3.278 |
|
76-02 |
76 |
-48 |
76.0±0.7 |
3˝ |
86.0±0.8 |
90.0±1.5 |
4.0 |
12.0 |
950 |
20 |
3.862 |
|
89-02 |
89 |
-56 |
90.0±0.8 |
3-1/2˝ |
101.0±0.8 |
105.0±2.0 |
3.2 |
9.6 |
1130 |
20 |
5.258 |
|
102-02 |
102 |
-64 |
102.0±0.8 |
4˝ |
113.0±0.8 |
117.0±2.0 |
2.6 |
7.8 |
1280 |
20 |
5.607 |
|
64-03 |
64 |
-40 |
64.1±1.0 |
2-1/2˝ |
76.5±0.8 |
80.5±1.0 |
8.5 |
25.5 |
870 |
20 |
4.113 |
|
76-03 |
76 |
-48 |
76.0±0.7 |
3˝ |
87.5±0.8 |
91.5±1.5 |
5.0 |
15.0 |
990 |
20 |
4.853 |
|
89-03 |
89 |
-56 |
90.0±0.8 |
3-1/2˝ |
103.0±0.8 |
107.0±2.0 |
4.0 |
12.0 |
1170 |
20 |
6.802 |
|
102-03 |
102 |
-64 |
102.0±0.8 |
4˝ |
115.0±0.8 |
119.0±2.0 |
3.0 |
9.0 |
1330 |
20 |
7.438 |
