DIN 20023/DIN EN856 4SH
4SH
DIN 20023/DIN EN856 4SH

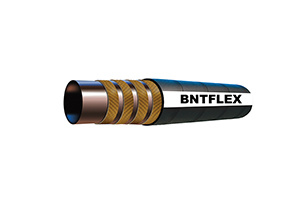

Steel wire spriral hydraulic hose
Correspond/Exceed the standards of AE J517 100R10/DIN EN 8564SH/ISO 3862
DIN 20023/DIN EN856 4SH
Inner tube:oil resistant synthetic rubber
Reinforcement:four spiral plies of steel wire wrapped in alternating directions
Cover:heat,abrasion and ozone resistant synthetic rubber
Temperature:-40℃~+100℃
|
产品型号 TYPE |
软管内经 I.D |
增强层外径 R.O.D |
胶管外径 O.D |
最大工作压力 MAX W.P. |
最小爆破压力 MIN B.P |
最小弯曲半径 MIN B.R |
长度 LENGTH |
参考重量 WEIGHT |
|
DN |
mm |
mm |
mm |
Mpa |
Mpa |
mm |
m |
Kg/m |
|
19x4SH |
19.2±0.6 |
28.4±0.8 |
32.2±0.8 |
42.0 |
168.0 |
280 |
40/20 |
1.694 |
|
22x4SH |
22.6±0.6 |
32.0±0.8 |
35.6±1.2 |
38.0 |
152.0 |
340 |
40/20 |
1.884 |
|
25x4SH |
25.7±0.7 |
35.2±0.8 |
38.7±1.2 |
38.0 |
152.0 |
340 |
40/20 |
2.098 |
|
32x4SH |
32.2±0.8 |
41.9±1.0 |
45.5±1.6 |
32.5 |
130.0 |
460 |
40/20 |
2.661 |
|
38x4SH |
38.5±0.8 |
48.8±1.0 |
53.5±1.6 |
29.0 |
116.0 |
560 |
40/20 |
3.215 |
|
51x4SH |
51.2±0.8 |
63.2±1.0 |
68.1±1.6 |
25.0 |
100.0 |
700 |
40/20 |
4.836 |
