PTFE HOSE
PTFE HOSE
PTFE HOSE
PTFE HOSE
Applications:Suitable for petroleum-based hydraulic fluids;Temperature range:-54℃~+204℃.

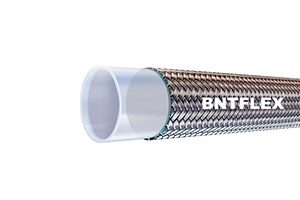

Constructions:This hose shall consist of an inner tube of polytetrafluoroethylee(PTFE),reinforce with a single braid stainless steel wire.According to the standards of SAE 100 J517 R14.
|
产品型号 TYPE |
软管内经 I.D |
软管规格代码 dash |
参考外径 O.D |
最大工作压力 MAX W.P. |
最小爆破压力 MIN B.P |
最小弯曲半径 MIN B.R |
长度 LENGTH |
|||
|
DN |
mm |
Inch |
|
mm |
Mpa |
psi |
Mpa |
psi |
mm |
m |
|
3R14 |
3.3±0.4 |
1/8˝ |
-3 |
6±0.5 |
10.5 |
1941 |
81 |
11502 |
40 |
50/100 |
|
5R14 |
4.8±0.4 |
3/16˝ |
-4 |
7.6±0.5 |
10.5 |
1941 |
70 |
9940 |
50 |
50/100 |
|
6R14 |
6.4±0.4 |
1/4˝ |
-5 |
9.5±0.5 |
10.5 |
1941 |
63 |
8946 |
75 |
50/100 |
|
8R14 |
7.9±0.4 |
5/16˝ |
-6 |
11.0±0.6 |
10.5 |
1941 |
56 |
7952 |
100 |
50/100 |
|
10R14 |
9.5±0.4 |
3/8˝ |
-7 |
12.8±0.6 |
10.5 |
1941 |
49 |
6958 |
125 |
50/100 |
|
11R14 |
10.4±0.5 |
7/16˝ |
-8 |
13.6±0.7 |
7.0 |
994 |
42 |
5964 |
135 |
50/100 |
|
13R14 |
12.8±0.5 |
1/2˝ |
-10 |
16.0±0.7 |
5.6 |
795 |
42 |
5964 |
165 |
50/100 |
|
16R14 |
15.9±0.6 |
5/8˝ |
-12 |
19.3±0.7 |
5.6 |
795 |
35 |
4970 |
200 |
50/100 |
|
19R14 |
19.0±0.6 |
3/4˝ |
-14 |
22.3±1 |
5.6 |
795 |
28 |
3976 |
230 |
50/100 |
|
22R14 |
22.2±0.8 |
7/8˝ |
-16 |
25.7±1 |
5.6 |
795 |
24.5 |
3479 |
230 |
50/100 |
|
25R14 |
25.4±0.8 |
1˝ |
-18 |
28.8±1 |
5.6 |
795 |
24.5 |
3479 |
300 |
50/100/40/20 |
|
29R14 |
28.6±0.8 |
1-1/8˝ |
-20 |
32.7±0.8 |
4.2 |
596 |
17.5 |
2485 |
410 |
40/20 |
