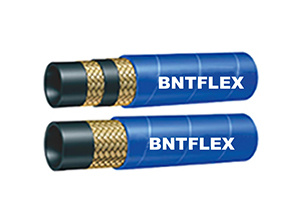

AIR COMPRESSOR HOSE
AIR COMPRESSOR HOSE
AIR COMPRESSOR HOSE
AIR COMPRESSOR HOSE
KEY PERFORMANCE
*EN/DIN and new SAE rated working pressures
*Wide range temperature resistance en/DIN pressure rating Outstanding ozone resistance,Superior weather and UV resistance
*Appearance:Wrap (I.D less than 25.4mm smooth cover)
*Colour:Black,red,blue,yellow,green,gray
APPLICATIONS
Low-medium pressure lines in extreme termperature conditions(foundries,compressors,hydraulics within engine compartments.etc.)
*Mineral oils,glycols and polyglycols,transmission fluids,air with oil vapours,mineral oil in aqueous emuision(up to 300 °F150℃)
|
PART.PEF. |
HOSE SIZE |
|
R.O.D |
O.D |
MAX W.P |
MIN B.P |
MIN B.R |
WEIGHT |
|||
|
DN |
dash |
inch |
mm |
mm |
bar |
psi |
bar |
psi |
mm |
Kg/m |
|
|
1SN 6 |
6 |
-4 |
1/4 |
11.0 |
13.4 |
225 |
3260 |
900 |
13000 |
100 |
0.24 |
|
1SN 8 |
8 |
-5 |
5/16 |
12.6 |
15.0 |
215 |
3110 |
860 |
12500 |
114 |
0.28 |
|
1SN 10 |
10 |
-6 |
3/8 |
16.0 |
17.3 |
180 |
2610 |
720 |
10400 |
127 |
0.34 |
|
1SN 12 |
12 |
-8 |
1/2 |
18.1 |
20.5 |
160 |
2320 |
640 |
9300 |
178 |
0.435 |
|
1SN 16 |
16 |
-10 |
5/8 |
21.3 |
23.5 |
130 |
1880 |
520 |
7500 |
200 |
0.505 |
|
1SN 19 |
19 |
-12 |
3/4 |
25.2 |
27.7 |
105 |
1520 |
420 |
6000 |
240 |
0.645 |
|
1SN 25 |
25 |
-16 |
1 |
33.1 |
35.8 |
88 |
1270 |
352 |
5100 |
300 |
0.98 |
|
1SN 31 |
31 |
-20 |
1-1/4 |
40.6 |
43.5 |
65 |
940 |
260 |
3700 |
420 |
1.305 |
|
1SN 38 |
38 |
-24 |
1-1/2 |
46.9 |
50.0 |
50 |
720 |
200 |
3000 |
500 |
1.55 |
|
1SN 51 |
51 |
-32 |
2 |
60.4 |
63.1 |
40 |
580 |
160 |
2300 |
630 |
2.25 |
|
2SN 6 |
6 |
-4 |
1/4 |
12.7 |
14.9 |
400 |
5800 |
1600 |
23000 |
100 |
0.39 |
|
2SN 8 |
8 |
-5 |
5/16 |
14.3 |
16.5 |
350 |
5070 |
1400 |
20000 |
114 |
0.435 |
|
2SN 10 |
10 |
-6 |
3/8 |
16.7 |
19.0 |
330 |
4780 |
1320 |
19000 |
127 |
0.535 |
|
2SN 12 |
12 |
-8 |
1/2 |
19.8 |
22.0 |
275 |
3980 |
1100 |
16000 |
178 |
0.645 |
|
2SN 16 |
16 |
-10 |
5/8 |
23.0 |
25.2 |
250 |
3620 |
1000 |
14500 |
200 |
0.770 |
|
2SN 19 |
19 |
-12 |
3/4 |
27.0 |
29.0 |
215 |
3110 |
860 |
12500 |
240 |
0.925 |
|
2SN 25 |
25 |
-16 |
1 |
34.8 |
37.0 |
175 |
2530 |
700 |
1000 |
300 |
1.36 |
|
2SN31 |
31 |
-20 |
1-1/4 |
44.3 |
47.0 |
150 |
2170 |
600 |
8600 |
420 |
2.03 |
|
2SN 38 |
38 |
-24 |
1 1/2 |
50.7 |
53.4 |
100 |
1450 |
400 |
5800 |
500 |
2.275 |
|
2SN51 |
51 |
32 |
2 |
63.5 |
66.2 |
90 |
1300 |
360 |
5200 |
630 |
3.155 |
